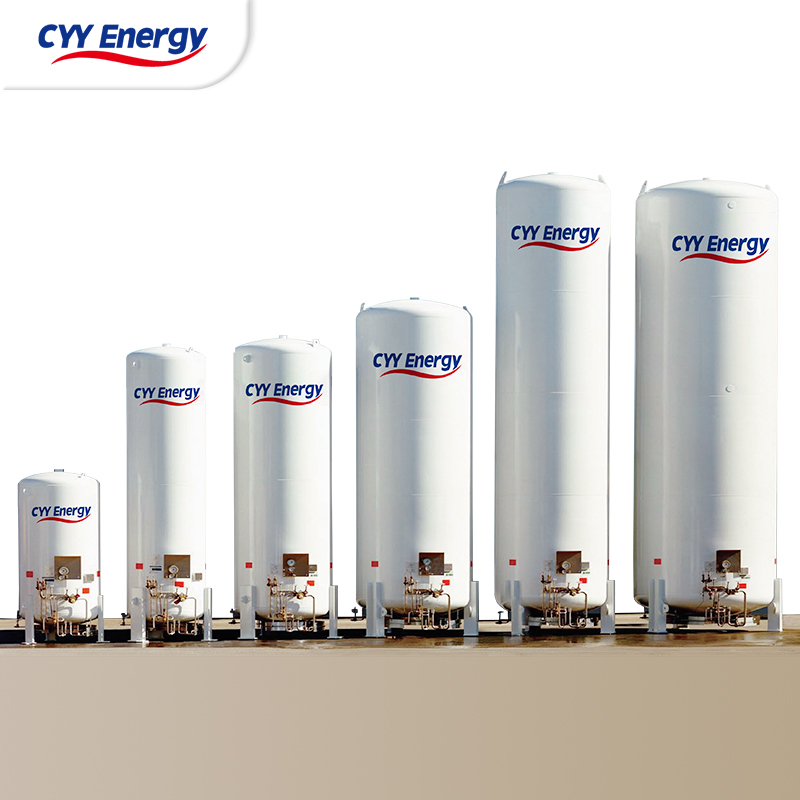

hot sale vertical cryogenic liquid storage tank in stock

Main Technical Parameters:

1. Volume: 1~250m3

2. Working Pressure: 1~40bar

3. Medium: Liquid oxygen, liquid nitrogen, liquid argon, liquid CO2,LNG, etc.

4.Insulation Type: Vacuum powders insulation/High vacuum multi-layer

5.Design code: GB, ASME,EN, etc..

Vertical-type Tank Main Technical Parameter
Capacity (m3)	Max.working pressure(MPa)	Dimensions (Diam×H)(mm)	Empty Weight(kg)	Static evaporation rate(%/day)
				LOX	LIN	LAR	LNG
5	0.8	Φ1900×5140	4250	0.43	0.66	0.46	0.43
10	0.8	Φ2300×6080	6200	0.36	0.55	0.39	0.37
15	0.8	Φ2500×7058	7950	0.35	0.54	0.37	0.35
20	0.8	Φ2500×8850	11000	0.33	0.51	0.35	0.33
20	1.8	Φ2500×8850	13500	0.33	0.51	0.35	0.33
30	0.8	Φ2900×8876	13300	0.29	0.45	0.31	0.3
50	0.8	Φ3000×12700	22500	0.23	0.35	0.25	0.23
60	0.8	Φ3200×13760	22600	0.21	0.33	0.22	0.21
75	0.8	Φ3500×13343	30100	0.19	0.29	0.2	0.2
100	0.4	Φ4000×13278	38500	0.16	0.25	0.17	0.16
100	0.8	Φ3500×17100	40440	0.16	0.25	0.17	0.16
150	0.4	Φ4000×19520	53500	0.14	0.22	0.15	0.14
150	0.8	Φ4000×19520	61300	0.14	0.22	0.15	0.14
200	0.4	Φ4300×21610	68300	0.13	0.2	0.14	0.13
