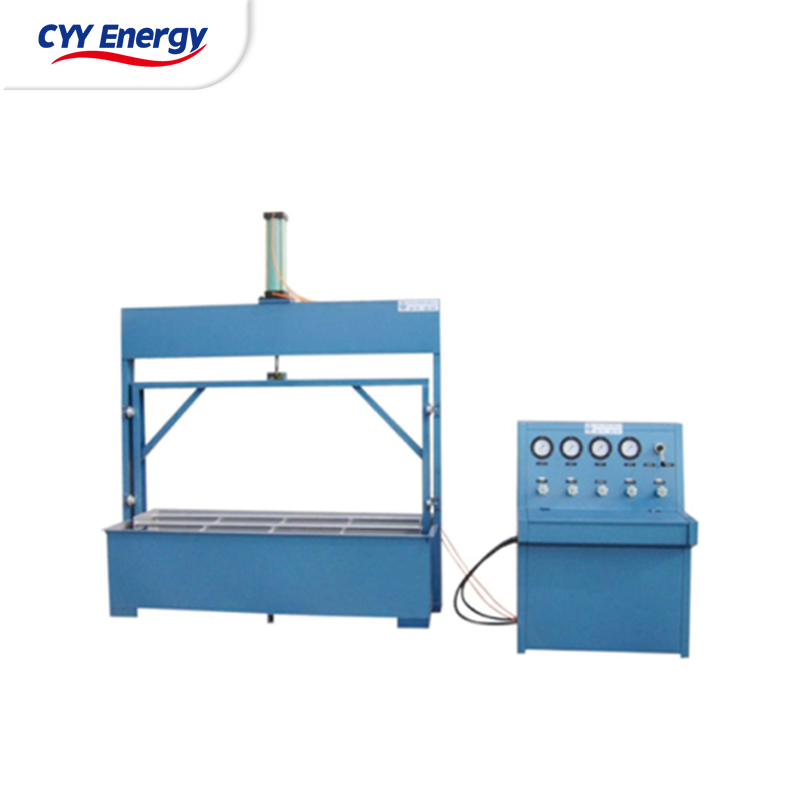

Cylinder air tightness testing machine

High-pressure cylinder must go through airtight test against the leakage in cylinder, or at valve base or button.The simplest method is to inflate the compressed air into thee steel cylinder, then sink it in water to check whether there is a leakage. This equipment is used to place the inflated steel cylinder in the frame, which is descended and elevated by the air cylinder. With reasonable structure, it is easy for operation, suitable for manufafacture of liquefied gas petroleum steel cylinder and testing institute of gas cylinder.

The high-pressure air can be recycled.
Availability:
Quantity:

Model GQ-2 airtight tester

This product is applicable to the airtight test of various high-pressure cylinders of oxygen, nitrogen, carbon dioxide, etc.

  1. Technical Parameter:

    Technical Parameter

    Applicable cylinder diameter

    Ф219~406mm

    Applicabl cylinder length

    900~1800mm

    Inflatable station at the same time

    1 set (connect two cylinders)

    Gas recovery station

    1 set (connect one cylinders)

    Lifting cylinder specification

    Ф125

    Working gas source pressure

    0.6~0.8MPa

    Test pressure

    ≤20MPa

    Test tank size(LxWxH)

    2100x800x550mm


2. Picture:

G-Q型钢瓶气密性试验机

GQ-4气密性试验机

RQ-1-RQ1乙炔气瓶气密试验机

3. Product Description:

Introducing our Cylinder Air Tightness Testing Machine, a reliable and efficient solution for conducting airtight tests on high-pressure cylinders. Designed to meet the demands of various industries, this product is ideal for testing cylinders of oxygen, nitrogen, carbon dioxide, and other gases.


Equipped with advanced technology, our Cylinder Air Tightness Testing Machine ensures accurate and precise results with every use. Its user-friendly interface makes it easy to operate, while its durable construction guarantees long-lasting performance. The machine is also equipped with safety features that ensure the protection of operators during testing.


With its ability to conduct airtight tests on a wide range of high-pressure cylinders, our Cylinder Air Tightness Testing Machine is an indispensable tool for any business that relies on the safety and reliability of their cylinders. Trust in our product to deliver accurate and dependable results every time.

High-pressure cylinder must go through airtight test against the leakage in cylinder, or at valve base or button.The simplest method is to inflate the compressed air into thee steel cylinder, then sink it in water to check whether there is a leakage. This equipment is used to place the inflated steel cylinder in the frame, which is descended and elevated by the air cylinder. With reasonable structure, it is easy for operation, suitable for manufafacture of liquefied gas petroleum steel cylinder and testing institute of gas cylinder.

The high-pressure air can be recycled.
