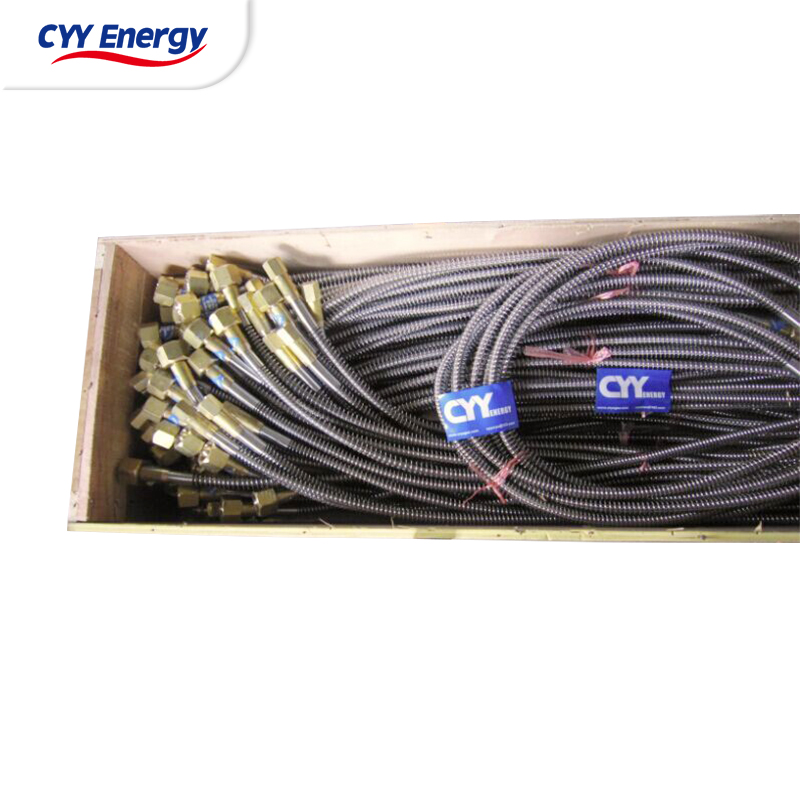

Filling Hose

Availability:
Quantity:

Gas Hoses specification:

Gas Hoses for Filling Gases, High Pressure Stainless Steel Braid Gas Oxygen Hose/Medical industrial High Pressure Oxygen Hose/Pick Tail for Gas O2 Delivery System.


Specifiactions:

-Made from high-quality stainless steel;

-With (Norminal Diameter) DN(mm): Φ 4mm or Φ 6mm(for optional);

-Length: 1.2m including the CGA540 connectors, which can be adjusted off(*Note: Different length can be satisfied);

-with brass-made adjustable connectors(CGA540 female thread) at both ends of each unit, and different threads of connectors can be satisfied upon request;

-Working Pressure(W. P. )/Testing Pressure(T. P. ): 3500 PSI/5250 PSI;

-The ACTUAL "W. P.: 3500 PSI; T. P.: 5250 PSI. " are ENGRAVED on the surface of both ends of the hose. (*Note: Your needed pressure can be satisfied, and they can be marked. ).
